Silicone Joiner - 90

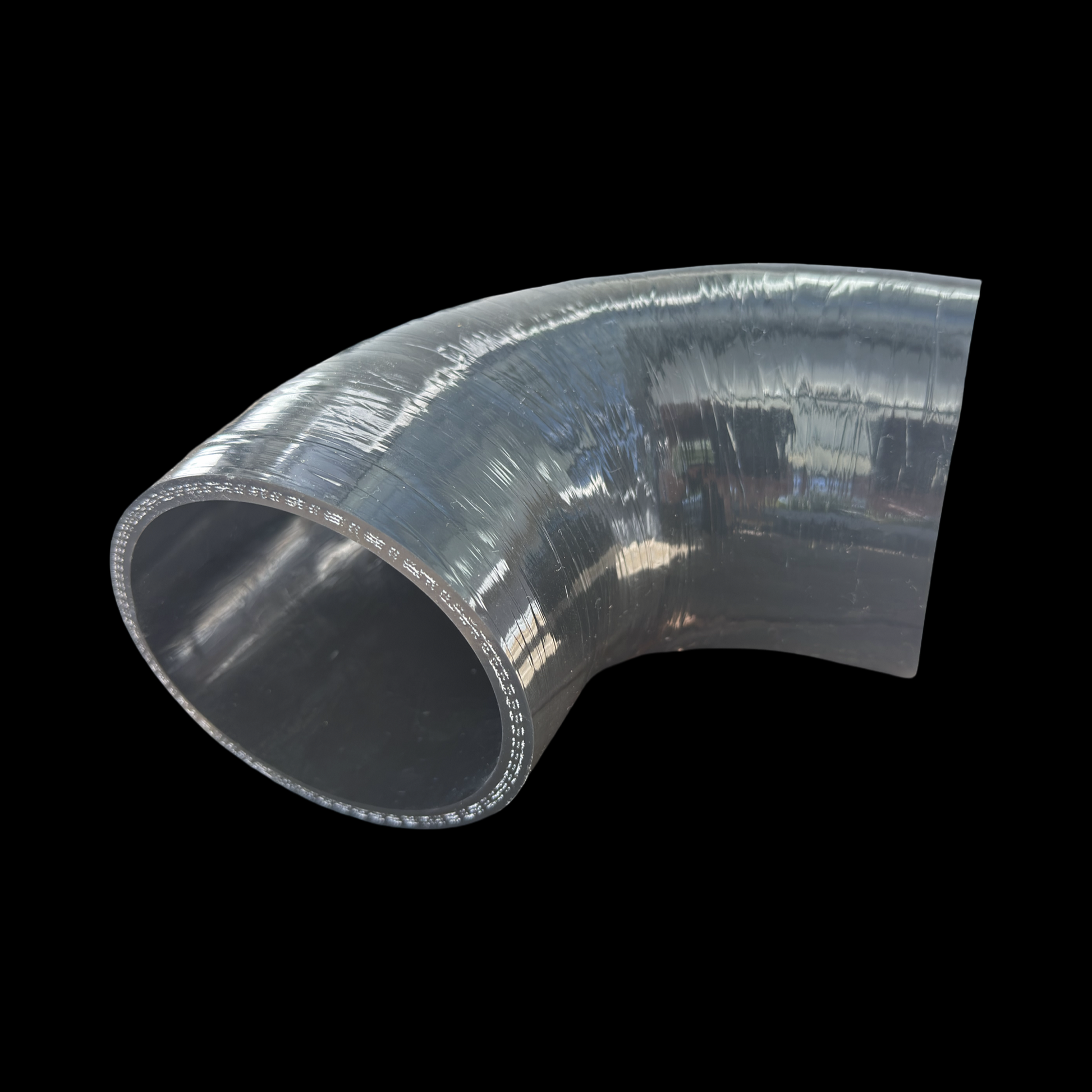

When space is tight and the pipe has to turn hard, a 90 degree silicone hose joiner does the job no straight coupler can. 4-ply reinforced silicone with a moulded elbow holds its shape under boost while soaking up the heat and vibration of a working engine bay.

90 degree joiners are the standard fix for turning a charge pipe off a turbo outlet, dropping intercooler piping down past the radiator support, or bringing a cold air intake around into the guard. The moulded bend keeps wall thickness consistent right through the radius so it won't kink or collapse under vacuum, and the smooth bore keeps the pressure drop well below what you'd get from a sharp fabricated corner. Available in 2" to 4" sizes, sold singly or in 5 and 10 packs for workshop and trade use.

Features:
• 90 degree silicone hose joiner for tight turbo, intercooler and air intake routing

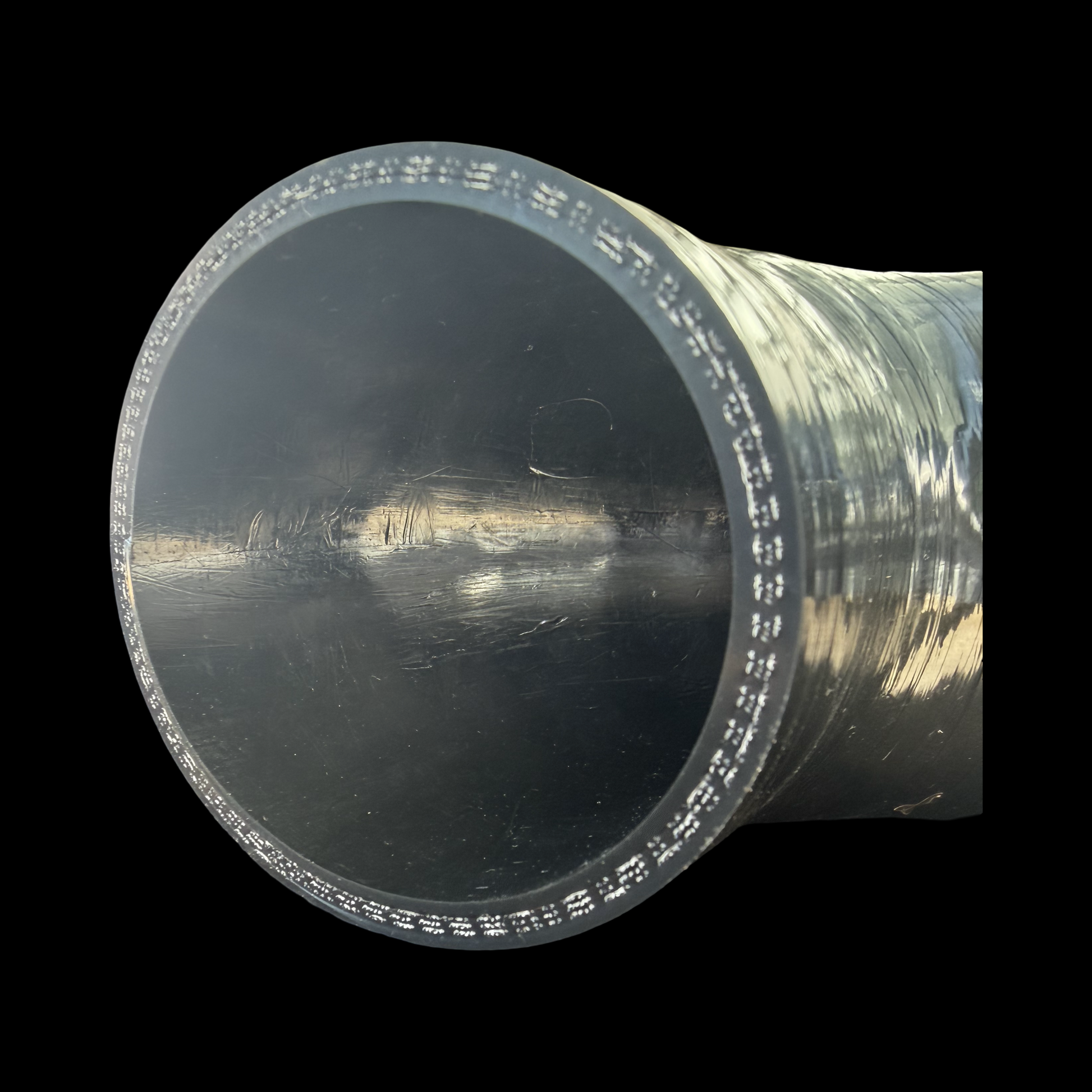

• 4-ply polyester reinforced silicone construction
• Temperature rated from -50°C to +180°C

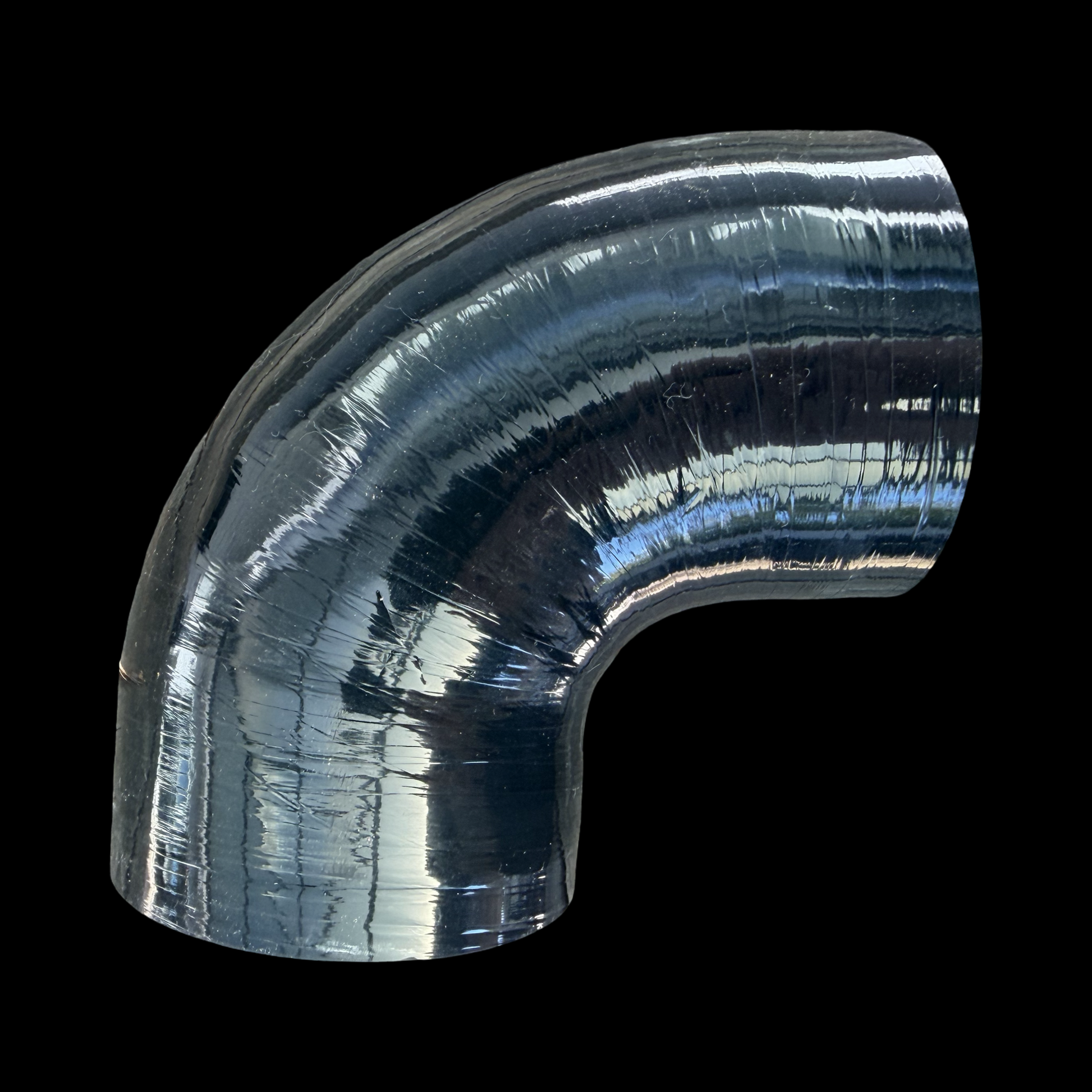

• Moulded elbow resists kinking and collapse under vacuum
• Consistent wall thickness through the full 90° radius
• Sizes: 2" (50mm), 2.5" (63mm), 3" (76mm), 3.5" (89mm), 4" (102mm)
• Leg length: 4" x 4" (102mm x 102mm)
• Sold individually or in 5 and 10 packs
• Suits standard worm drive and constant tension hose clamps
