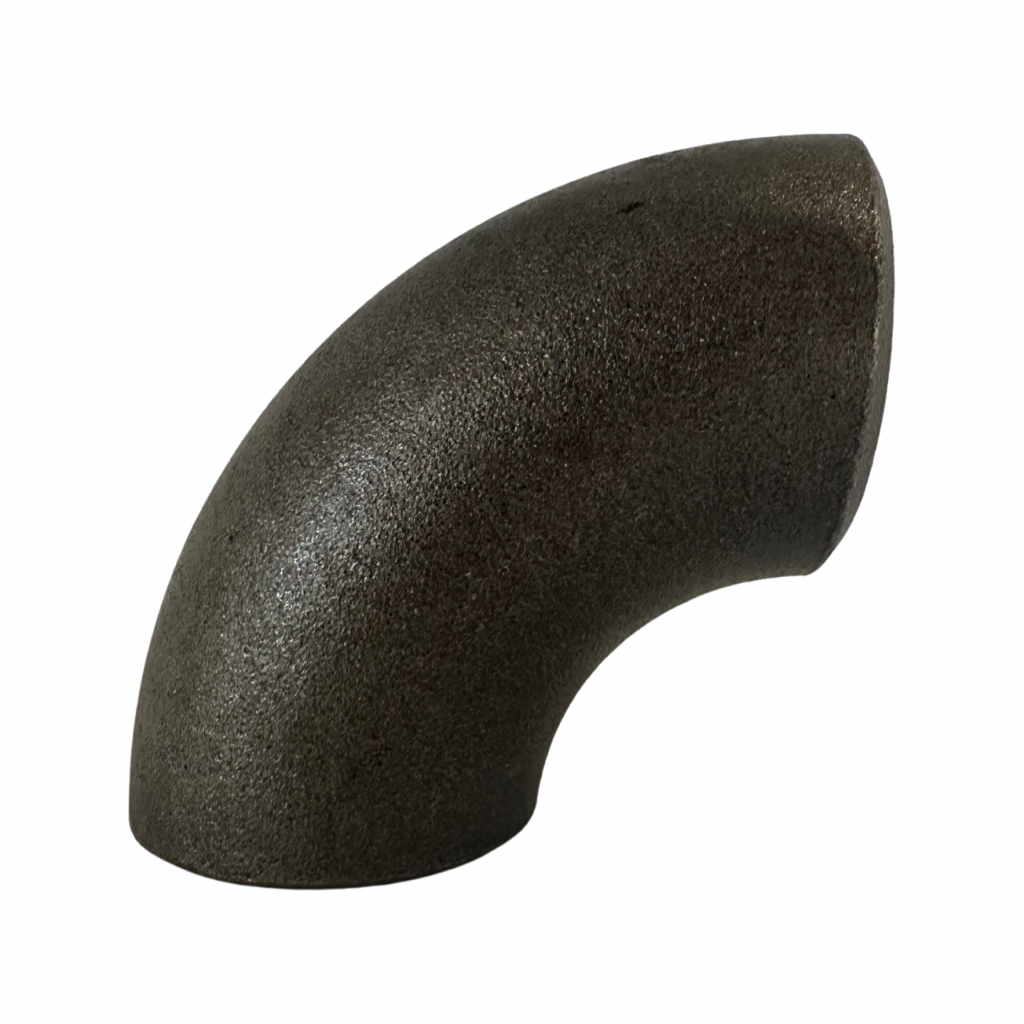

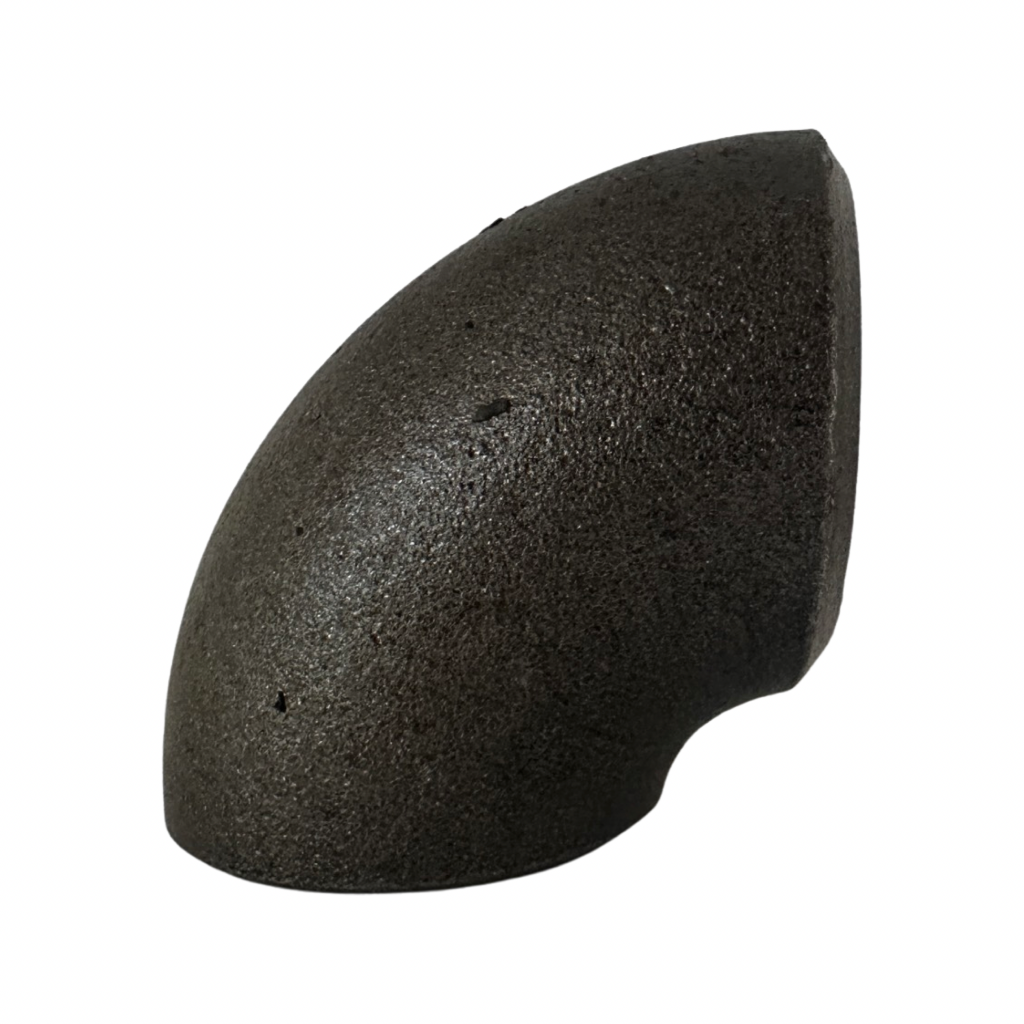

90° Steampipe Elbows SCH40 Steel
90° Steampipe Elbows SCH40 Steel
Couldn't load pickup availability
Our Schedule 40 Steel 90° Steampipe Elbows are designed to provide exceptional strength and durability for custom manifold fabrication and other high-performance applications. Made from high-quality steel, these elbows offer excellent resistance to high temperatures and pressures, making them ideal for turbo manifolds, exhaust systems, and other demanding applications.
We offer SCH40 steel 90° elbows in a range of sizes to meet your specific fabrication requirements, with additional sizes available upon request.
Available Sizes & Specifications:
1.25" (32N.B) Elbows
- Outside Diameter: 42mm
- Inside Diameter: 36mm
- Wall Thickness: 3mm
1.5" (40N.B) Elbows
- Outside Diameter: 48mm
- Inside Diameter: 43mm
- Wall Thickness: 3mm
2" (50N.B) Elbows
- Outside Diameter: 60mm
- Inside Diameter: 55mm
- Wall Thickness: 3mm
2.5" (65N.B) Elbows
- Outside Diameter: 73mm
- Inside Diameter: 67mm
- Wall Thickness: 3mm
Key Features:
- Made from high-strength SCH40 steel for durability and longevity
- Precision-formed 90° bends for efficient airflow and easy installation
- Suitable for turbo manifolds, exhaust fabrication, and custom piping projects
- Available in multiple sizes to suit a variety of applications
- Additional sizes available upon request
For custom sizes or bulk orders, contact us to discuss your specific project requirements.
